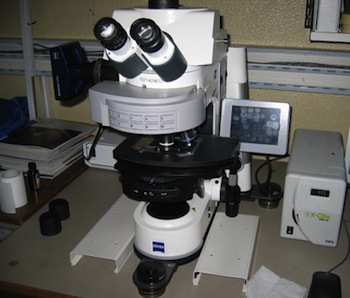

Zeiss AxioImager Z1

Camera:

·   Axiocam MR ver.3.0 (Carl Zeiss, Germany)

Software:

·   Software Axiovision 4.7  (Carl Zeiss, Germany)

Objectives:

·   EC-Plan-Neofluar 10x/0.30 Ph1

·   EC-Plan-Neofluar 20x/0.50 Ph2

·   EC-Plan-Neofluar 40x/1.30 Oil Ph3

·   Plan-Apochromat 63x/1.40 Oil DIC

·   Plan-Apochromat 100x/1.40 Oil DIC

Filter sets:

·   49 - Excitation: G 365 Beam Splitter: FT 395 Emission: BP 445/50

·   38HE - Excitation: BP 470/40 (HE) Beam Splitter: FT 495 (HE) Emission: BP 525/50 (HE)

·   43HE - Excitation: BP 550/25 (HE) Beam Splitter: FT 570 (HE) Emission: BP 605/70 (HE)

·   47 HE - Excitation: BP 436/25 DMR 25 Beam Splitter: FT 455 HE Emission: BP 480/40 DMR 25

·   46HE - Excitation: BP 500/25 DMR 25 Beam Splitter: FT 515 HE Emission: BP 535/30 DMR 25

·   50 - Excitation: BP 640/30 Beam Splitter: FT 660 Emission: BP 690/50

Special Features:

·   Motorised operation

·   Epi-fluorescence

·   DIC

·   Automatic multi-dimensional image acquisition



* Equipment acquired under the Programa Nacional de Re-equipamento Científico (Proj. REEQ/146/BIO/2005) co-financed by FCT - Fundação para a Ciência e a Tecnologia and POCI 2010 (fonte FEDER).
