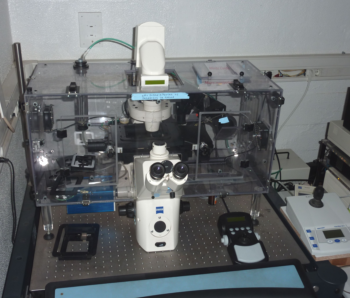

Zeiss Axiovert 200M Live Cell station



Camera:

·    CoolSnap HQ (Roper)

Software:

·    Micro-Manager 1.3

Objectives:

·    A-Plan 20x/0.30 Ph1

·    Plan-Neofluar 40x/1.30 Oil Ph3

·    Plan-Apochromat 63x/1.40 Oil DIC

·    Plan-Apochromat 100x/1.40 Oil DIC

Filter sets:

·    DAPI-1160A  - Excitation: 387/11; Emission: 447/60

·    GFP-3035B - Excitation: 472/30; Emission: 520/35

·    TX-RED4040B - Excitation: 562/40; Emission: 624/40

·    CY5-4040A - Excitation: 628/40; Emission: 692/40

Special Features:

·    Motorised operation

·    Epi-fluorescence

.    XY motorized stage

.    NanoPiezo Z stage

·    Automatic multi-dimensional image acquisition

·    Environmental chamber with temperature and CO2 control *

·    Anti-vibration passive table *



* Equipment acquired under the Programa Nacional de Re-equipamento Científico (Proj. REEQ/146/BIO/2005) co-financed by FCT - Fundação para a Ciência e a Tecnologia and POCI 2010 (fonte FEDER)
